Test Electronics

01

Pre-Production Modular Bed of Nails Test Fixure

01
03

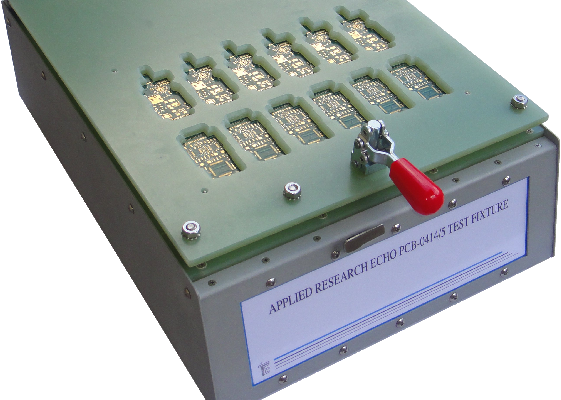

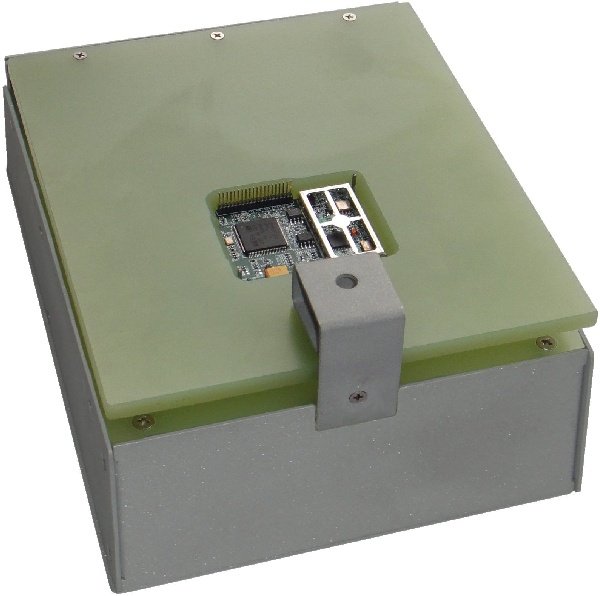

Edge Press Technology Tests Multiple Boards in Panelized form

01
04

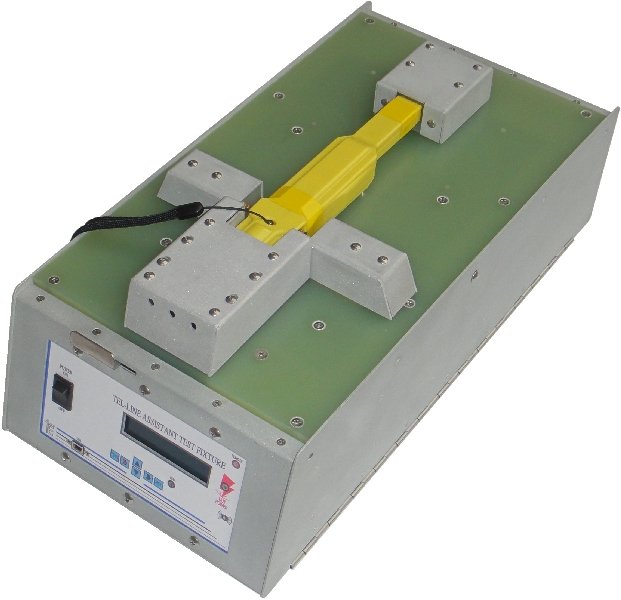

Six Sided Final Assembly Functional Test Fixtures (showing 5 sided version)

04
07

Pneumatic Bed of Nails Test Fixure

07
07

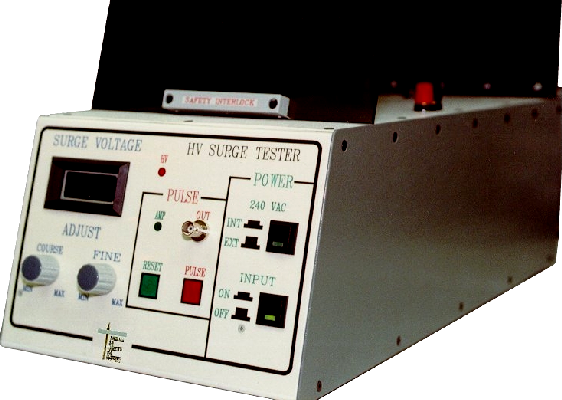

Electronic Test Equipment Tailor Made for Special Testing needs.

07
05

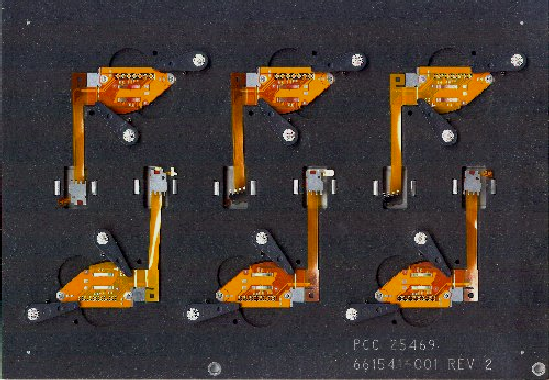

Process Carrier Pallets Wave Solder or IR Reflow -> Wash -> Test.

05

Featured Products

All Products
Protector
About Lever Actuated Clamshell:

Designed for testing heavy massive boards. Boards with heavy components like large transformers and inductors can destroy normal test fixtures.

AdjustaBON

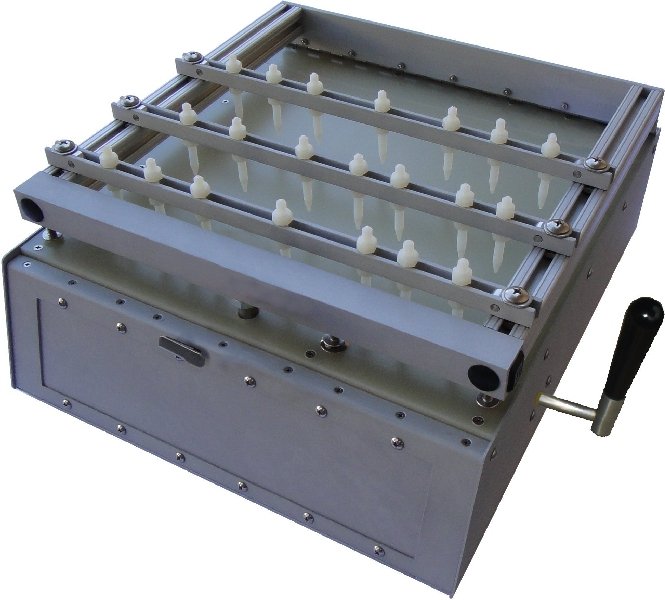

About Adjustable Clamshell:

Designed for quick test development. This fixture can be configured to probe almost any circuit board in just a few hours.

BoxProber

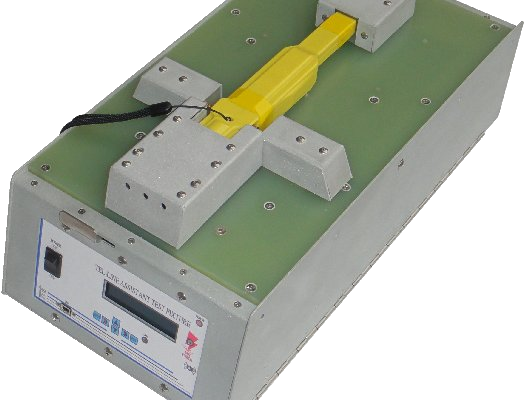

About 6 Sided:

6 sided Bed of Nails circuit board test fixture. Probes top bottom and all 4 sides. Central camming mechanism pull plates inward. Mechanically or electrically actuated options.

Prober

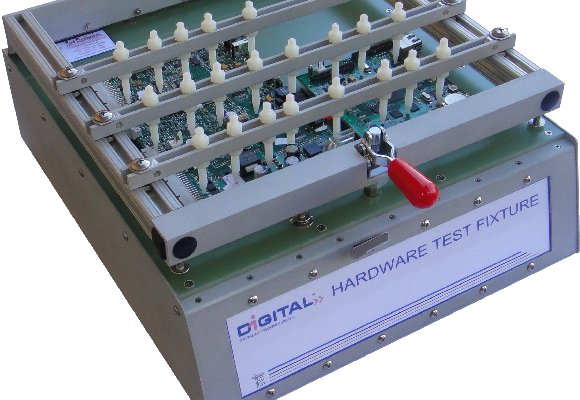

About Production Clamshell:

Production volume test fixture with swappable test plates, front and rear panel inlays, and multi-testing compatibility with process carrier pallets.

Rand

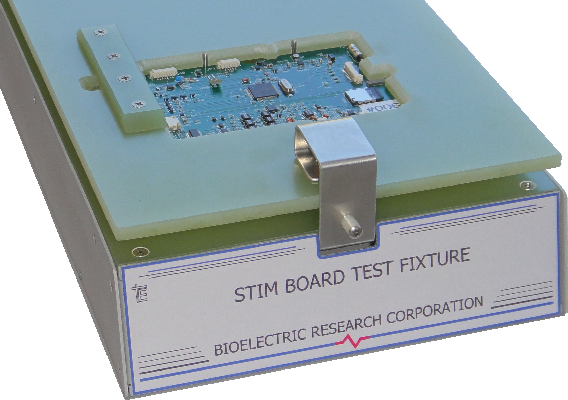

About R&D Clamshell:

Designed for Research & Development and Pre-Production environments to support often reoccurring product design changes.

Automator
About Double Sided:

Designed to provide factory assembly line conveyor based pneumatically actuated full test automation.
